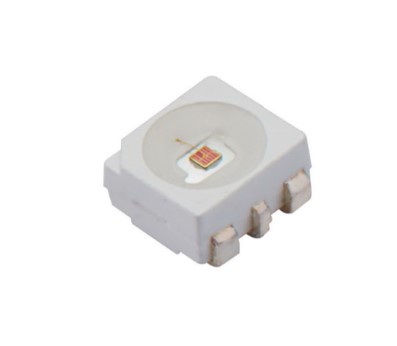

3528 6PIN
120° beam angle
APPLICATION
This High Brightness 2835S LEDs in PLLC 6 PIN are available in White, PC Amber and RED.These 0.2W LEDs are equipped with heat sink to enhance operating performance.
With special binning technology, these LEDs are ideal for architecture lighting and special lighting needs.
FEATURES
- Package Dimension = 3.5x2.8x1.9mm
- CRI = 80 and above
- RoHS compliant
- Custom Bin available upon special request
Specifications
| Part No. | Power (Watt) |
Brightness ( lm/mcd ) |
View angle |
Color | CCT/Wd(nm) | CRI | Drive current (mA) |
Vf typ (V) |
|---|---|---|---|---|---|---|---|---|
| QLSP05WXG | 0.18 | 16000 | 120 | White | 5000~8000K | 80 | 140~250 | 3.1 |
| QLSP05PCAG | 0.45 | 15000 | 120 | PC Amber | 588~592 | 80 | 140~200 | 3.15 |
| QLSP05RG | 0.3 | 7300 | 120 | RED | 615~630 | 80 | 140~200 | 2.1 |
