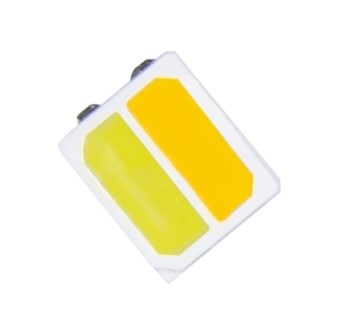

2835 Dual LED
APPLICATION
This high output reflector type 2835S LEDs with dual color in one package to suit customer’s application. These dual color LEDs are equipped with heat sink to enhance operating performance. With special binning technology, these LEDs are ideal for architecture lighting and special lighting needs.FEATURES
- Dual color in package
- PC Amber and Cold White
- High brightness output @ 150mA
- Package Dimension = 2.8mm X 3.5mm X 0.68mm
- RoHS compliant
SPECIFICATION
| Part No. | Color | If(mA) | Vf (Typ~Max) |
CCT | Typical Efficiency (lm/W) |
Luminus Flux (lm/mcd) |
|---|---|---|---|---|---|---|
| QLSP19ZC2PCAH | Cold White | 150mA | 3.0~3.4 | 6250 | 140 | 60~70lm |
| PC Amber | 150mA | 3.0~3.4 | 1800 | 120 | 45~55lm |
