QLUV07G-5W-120
-
Flat Quartz Glass
FEATURES

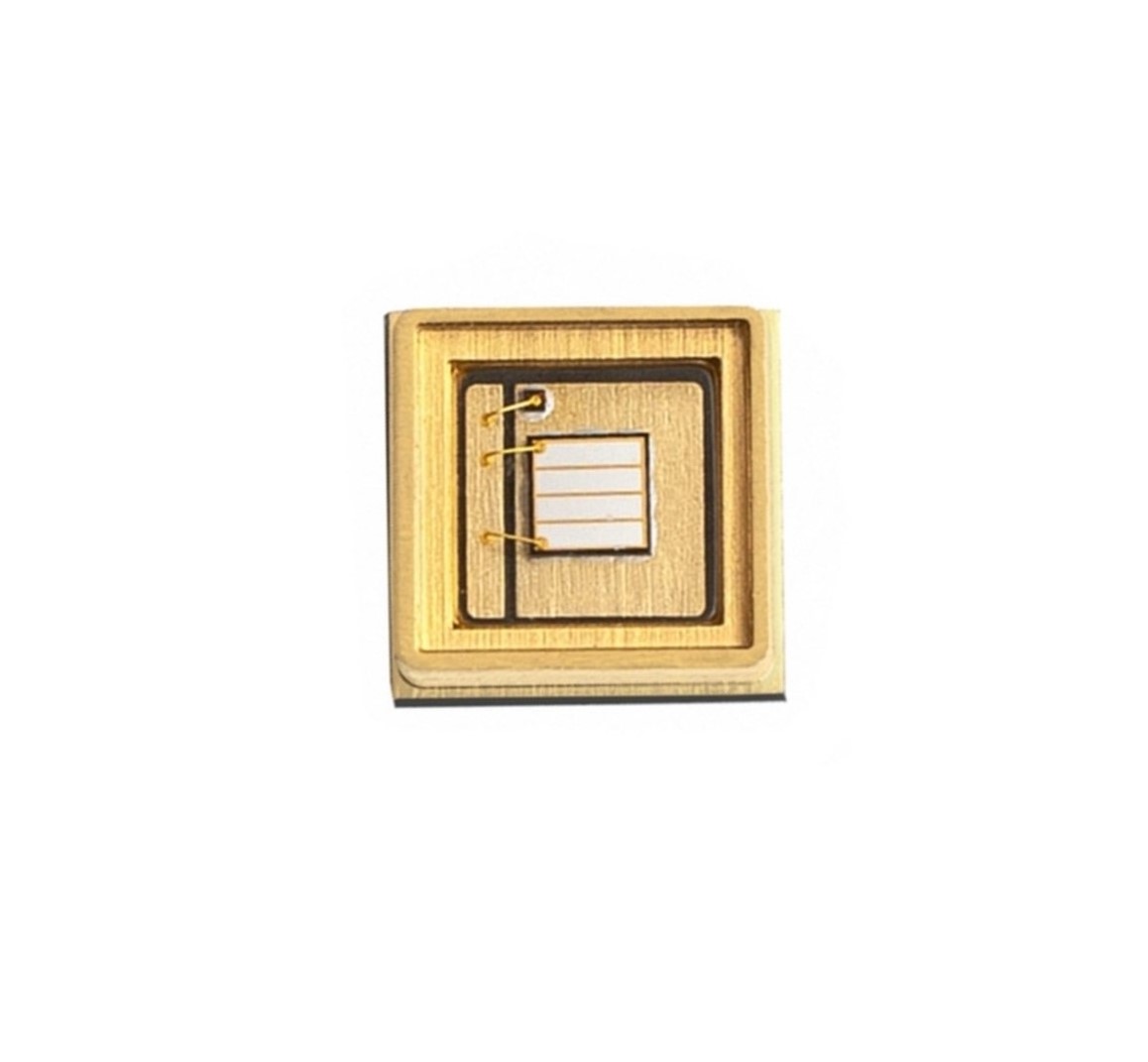

- 3535 package with Quartz Glass
- Drive current is 500mA
- Package Dimension = 3.5x3.5x1.5mm
- RoHS compliant
SPECIFICATIONS
| Part No. | Power (Watt) |
Type | View angle |
Radiant Power (mW) |
Wd(nm) | Vf typ(V) |
Drive current (mA) |
Max. current (mA) |
|---|---|---|---|---|---|---|---|---|
| QLUV07M5GEP | 4W | Quartz glass | 120 | 700 | 365 | 3.7 | 500mA | 1000 |
| QLUV07L5GEP | 5W | Quartz glass | 120 | 850 | 385 | 3.5 | 500mA | 1500 |
| QLUV07K5GEP | 5W | Quartz glass | 120 | 850 | 395 | 3.5 | 500mA | 1500 |
| QLUV07J5GEP | 5W | Quartz glass | 120 | 850 | 405 | 3.5 | 500mA | 1500 |
